Edge banding machine

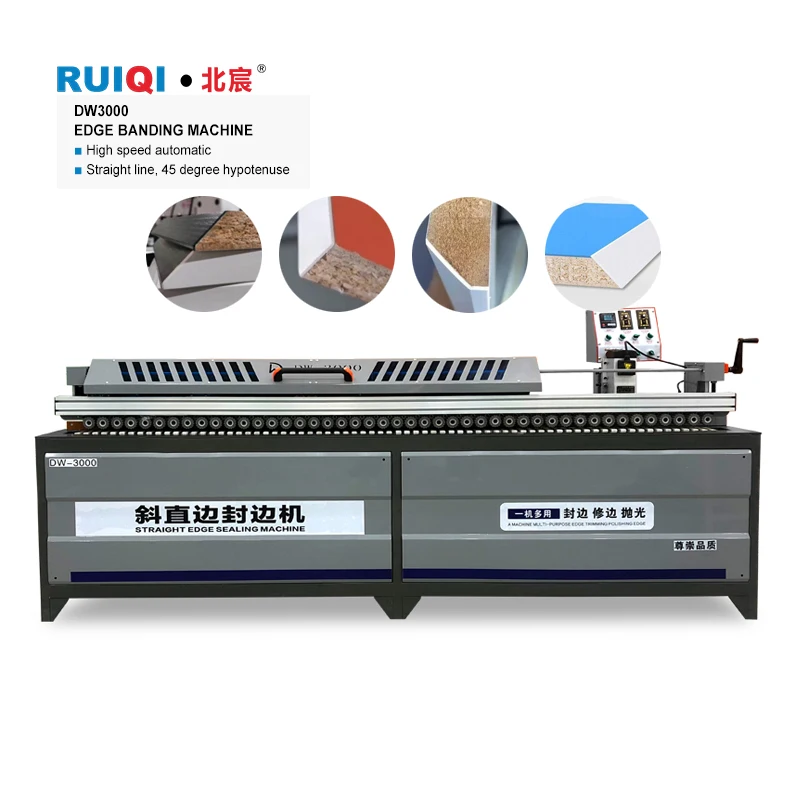

Edge Banding Oblique Bevel Straight Line Woodworking Panel Furniture Pvc 45 Degree Automatic Edge Banding Machine
Products Description DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machineThe Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding […]
100+
Countries
MOQ 1
Unit
15-25 Days
Lead Time
- Full OEM/ODM support -- custom logo, voltage (110V-440V), multilingual panels
- ISO 9001 & CE certified, 5 national patents, 60 professional engineers
- 12-month warranty, remote technical support & spare parts service
- Professional export packaging, customs clearance support, on-time delivery
Products Description
DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine
The Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding is more obedient. 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor. the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor. with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line. the finish is better
Product Paramenters
Model | DW3000 | |||||
Total power | 11KW | |||||
Standard features | Plate milling. 30-90 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming | Voltage | 380V/415V | |||
Minimum length of sheet | 30CM | Minimum width of sheet | 15CM | |||
Edge banding height | 0-50MM | Edge banding thickness | 0.3-3MM | |||
Pre-milled motor | 2.2KW | Heating power | 2.2KW*2 | |||
Edge power/speed | 160W 0-12M/min | Air source pressure | 0.5-0.7Mpa | |||
Transmission power/speed | 180W 0-12M/min | Glue pot capacity | 4000ml | |||
Trimming power/speed | 2.2KW*2 | Vacuum power | 550W | |||
Polishing power/speed | 0.4KW*2 | |||||
Product Size | 299*65*130CM | Product weight | 430KG | |||
Package Size | 312*74*115CM | |||||
Both oblique and straight. edge trimming and polishing. double hot air design. feeding auxiliary slide. 8 sets of oblique pressure wheels. automatic alignment. 45-degree pre-milling of the plate. edge banding with slots | ||||||
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | Edge Banding Oblique Bevel Straight Line Woodworking Panel Furniture Pvc 45 Degree Automatic Edge Banding Machine |
| Category | Edge banding machine |
| Voltage Options | 110V / 220V / 380V / 440V (customizable) |
| Frequency | 50Hz / 60Hz (customizable) |
| Certification | ISO 9001, CE |
| MOQ | 1 Unit |
| Lead Time | 15-25 Working Days |
| Warranty | 12 Months |
| OEM / ODM | Available -- logo, color, panel language |
* Detailed technical specifications vary by model. Please contact us with your specific requirements for a complete datasheet.
Shipping & Export
-
Export Packaging
Heavy-duty wooden crate with foam padding and moisture protection
-
Shipping Methods
Sea freight (FCL/LCL), air freight, express -- we support all methods
-
Customs Support
Full documentation: CO, commercial invoice, packing list, HS code assistance
-
Port of Loading
Tianjin / Qingdao port, China -- 20 years export experience
OEM / ODM Services
-
Logo & Branding
Custom logo printing, color scheme, and nameplate engraving
-
Voltage Configuration
110V / 220V / 380V / 440V, 50Hz / 60Hz -- any region supported
-
Multilingual Panels
Control panels in English, Spanish, French, Arabic and more
-
Custom Specifications
Modified dimensions, accessories, or feature sets on request
