Edge banding machine

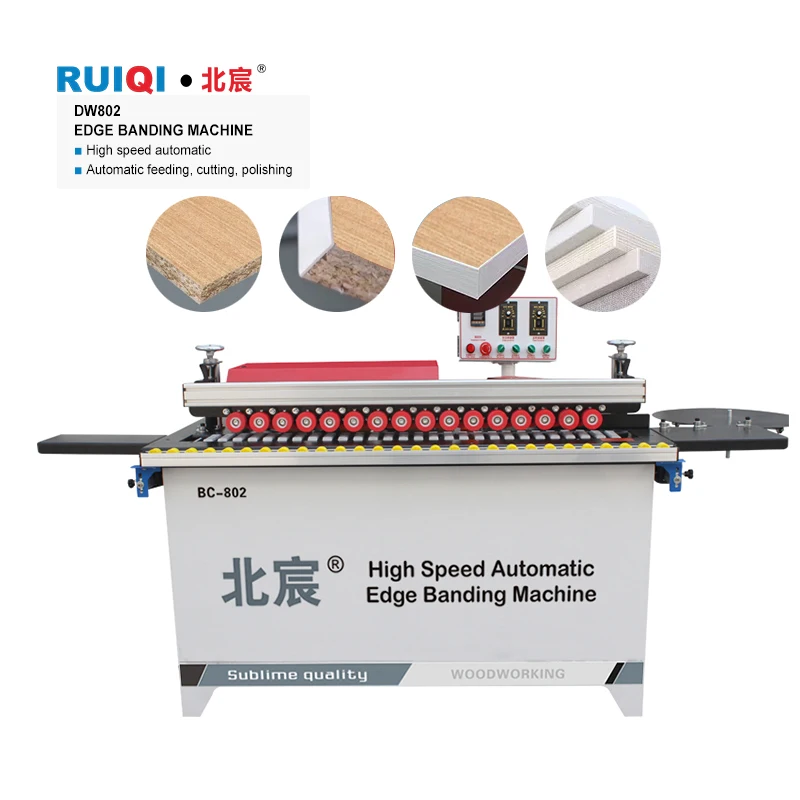

Mdf Board Making Pvc Round Trimming Edge Banding Auto Edgebander Machine | Wood Based Panels Machinery
Products DescriptionDW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for home decoration production. Automatic edge bander machine is clean and tidy with the […]
100+
Countries
MOQ 1
Unit
15-25 Days
Lead Time
- Full OEM/ODM support -- custom logo, voltage (110V-440V), multilingual panels
- ISO 9001 & CE certified, 5 national patents, 60 professional engineers
- 12-month warranty, remote technical support & spare parts service
- Professional export packaging, customs clearance support, on-time delivery
Products Description
DW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.
Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for home decoration production.
Automatic edge bander machine is clean and tidy with the design of integrated pressure beam and the conveyor belt of silica gel material.
The plate is stable and firm and not easy to scratch the plate. The design of large capacity glue pot makes it unnecessary to put glue frequently. save time and effort for carpenters. and can continuously seal multiple plates. convenient operation
Standard features:Edge banding. trimming. polishing. automatic head and tail. with vacuum
Product Paramenters
Model | DW802 | ||
Total power | 4200W | ||
Standard features | Edge banding. trimming. polishing. automatic head and tail. with vacuum | voltage | 220V/380V/customization |
Minimum length of sheet | 25CM | Minimum width of sheet | 10CM |
Edge banding height | 0-50MM | Edge banding thickness | 0.3-3MM |
Edge power/speed | 140W | Air source pressure | 0.4-0.8Mpa |
Transmission power/speed | 140W | Glue pot capacity | 4000ml |
Trimming power/speed | 800W*2 | Vacuum power | 1200W |
Polishing power/speed | 180W*2 | ||
Product Size | 130*60*95CM | product weight | 135KG |
Package Size | Full wooden box 134*64*98CM Wooden box cover 130*60*96CM |
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products. Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ? We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality. Q2:Can I choose the Plug? Yes.we have EU.USA.AU.UK plug for your country use Q3:Is it OK to print my logo on the product? Yes.Please inform us formally before our production and confirm the design firstly for the mass production. Q4.I do not know Chinese.will the operation panel in English or French or other? Yes.all our machine are with Chinese and English.If you want only English or Spanish or other. we also can customize to you Q5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world. also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries. Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe. Q7.What to do if l have any other specifications for the current? lf you have any different requirements.just contact us and we will meet you. Q8.lf I need a sample for pretest. do you sale sample for this inquiry ? Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation. Q9.Can you produce the products according to my own drawings? Yes. we can do OEM according to your requirement
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | Mdf Board Making Pvc Round Trimming Edge Banding Auto Edgebander Machine | Wood Based Panels Machinery |
| Category | Edge banding machine |
| Voltage Options | 110V / 220V / 380V / 440V (customizable) |
| Frequency | 50Hz / 60Hz (customizable) |
| Certification | ISO 9001, CE |
| MOQ | 1 Unit |
| Lead Time | 15-25 Working Days |
| Warranty | 12 Months |
| OEM / ODM | Available -- logo, color, panel language |
* Detailed technical specifications vary by model. Please contact us with your specific requirements for a complete datasheet.
Shipping & Export
-
Export Packaging
Heavy-duty wooden crate with foam padding and moisture protection
-
Shipping Methods
Sea freight (FCL/LCL), air freight, express -- we support all methods
-
Customs Support
Full documentation: CO, commercial invoice, packing list, HS code assistance
-
Port of Loading
Tianjin / Qingdao port, China -- 20 years export experience
OEM / ODM Services
-
Logo & Branding
Custom logo printing, color scheme, and nameplate engraving
-
Voltage Configuration
110V / 220V / 380V / 440V, 50Hz / 60Hz -- any region supported
-
Multilingual Panels
Control panels in English, Spanish, French, Arabic and more
-
Custom Specifications
Modified dimensions, accessories, or feature sets on request
